Display Message (0.0.6) via swiftDialog

Leverage switftDialog and Jamf Pro Policy Script Parameters to easily display engaging end-user messages

Introduction

Using Bart Reardon’s swiftDialog and Jamf Pro Policy Script Parameters, creating engaging end-user messages is easy.

When you really want to get your user’s attention, one of my favorite options is --blurscreen, which “will blur the background of the display while dialog is showing.”

Configuration

Complete the following steps to display messages to your users with swiftDialog.

A. Conduct a dry-run of the Display Message with swiftDialog script

Complete the following steps on an enrolled, testing Mac.

  1. Open the macOS Terminal.
  2. Download the latest production version of Display Message with swiftDialog script using the following command. (The script will be saved to your Downloads folder as Display-Message-via-Dialog-reference.bash):
curl -o ~/Downloads/Display-Message-via-Dialog-reference.bash https://raw.githubusercontent.com/dan-snelson/dialog-scripts/main/Display%20Message/Display-Message-via-Dialog.bash
  1. Execute the Display Message with swiftDialog script (with elevated privileges) using the following command:
sudo bash ~/Downloads/Display-Message-via-Dialog-reference.bash

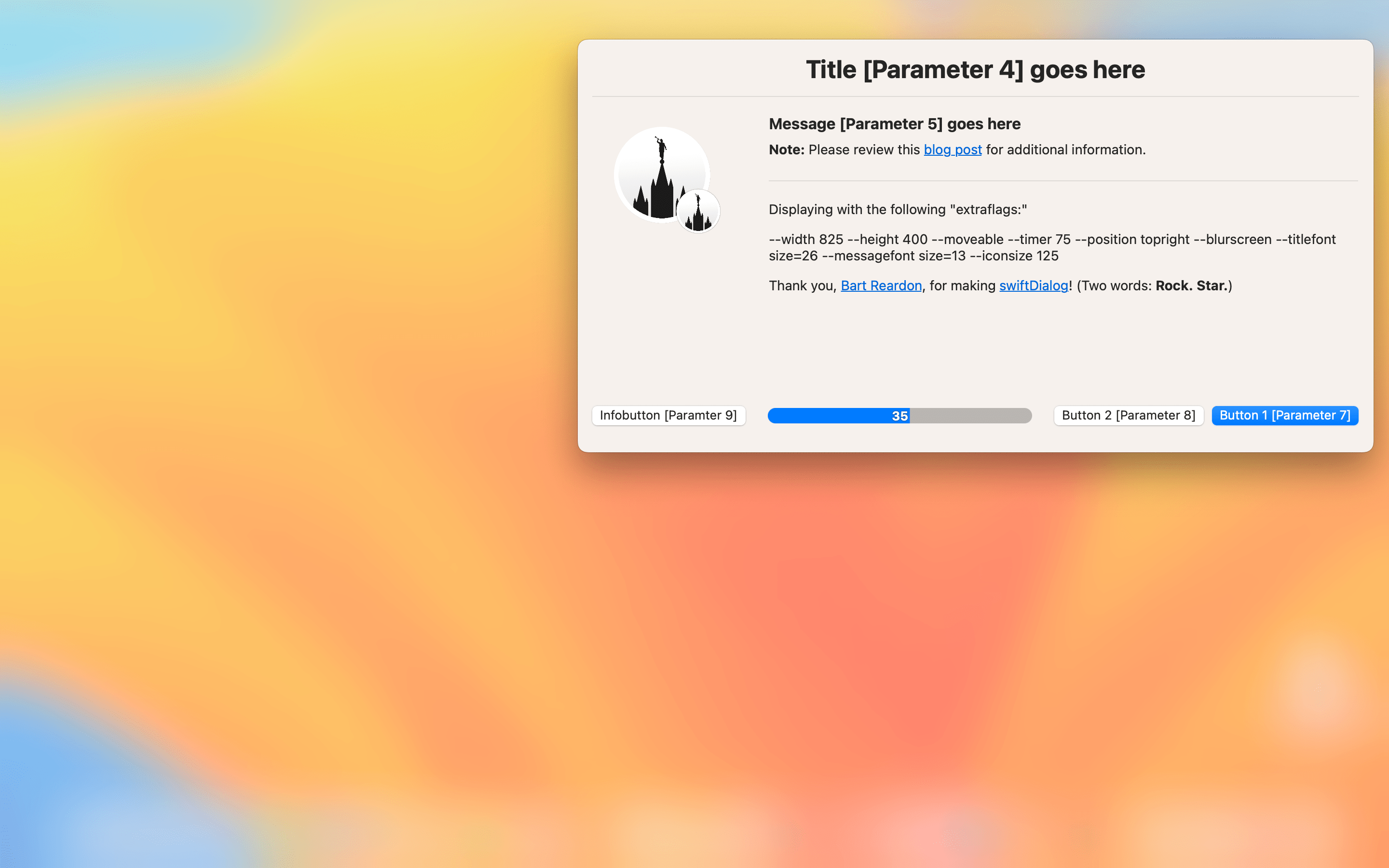

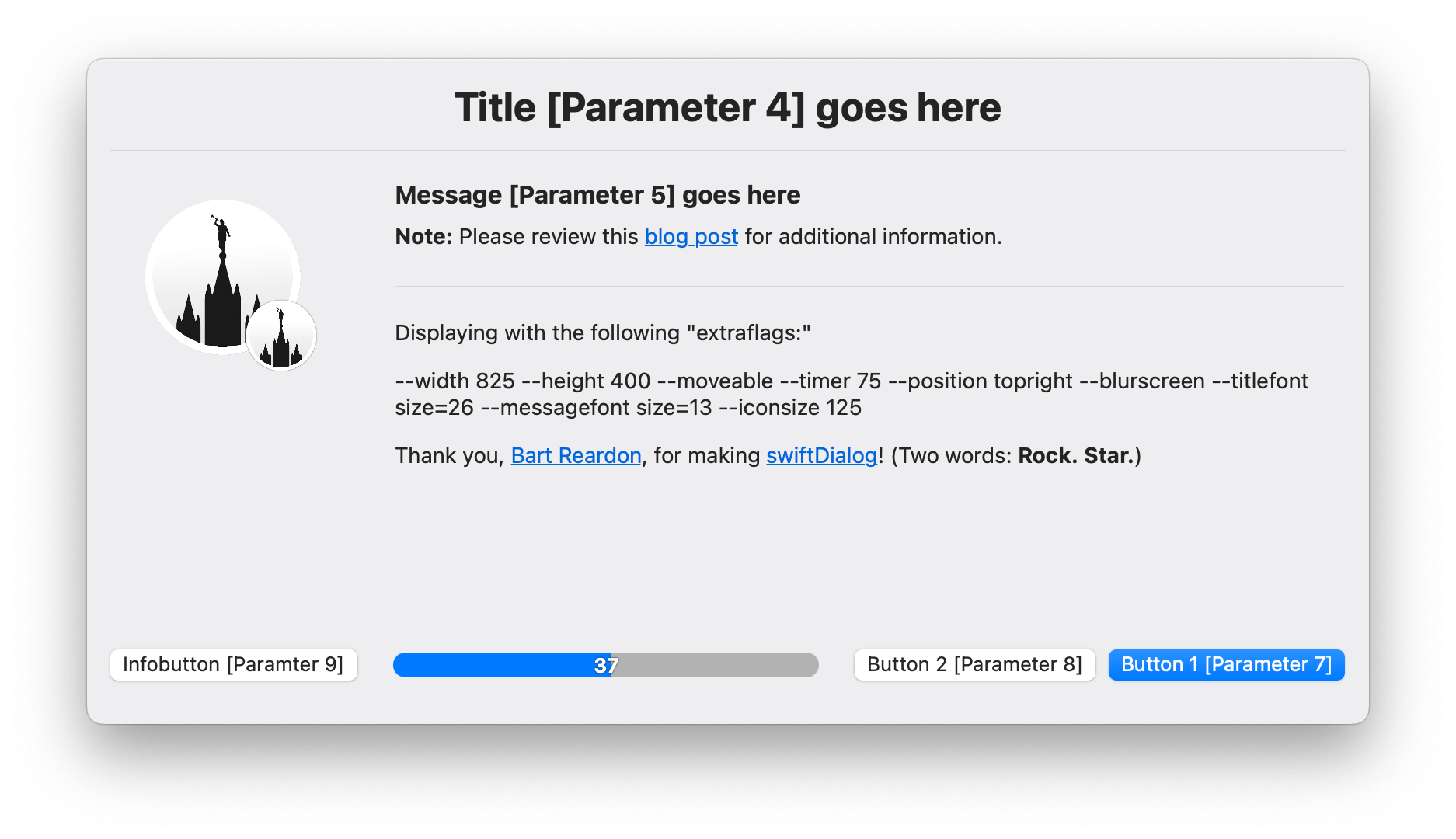

  1. Review the dialog’s various parameters:
    • Title [Parameter 4]
    • Message [Parameter 5]
    • Icon [Parameter 6]
    • Button 1 (i.e., OK) [Parameter 7]
    • Button 2 (i.e., quit) [Parameter 8]
    • Button 3 (i.e., infobutton) [Parameter 9]
    • Extra Flags (i.e., --moveable --timer 75 --position topright --blurscreen) [Parameter 10]
  2. Click Button 2 [Parameter 8] (i.e., quit) and observe the output in Terminal
% sudo bash ~/Downloads/Display-Message-via-Dialog-reference.bash
2022-12-27 12:04:51

###
# Display Message via Dialog (0.0.6)
###

2022-12-27 12:04:51  macOS 13 installed; proceeding ...
2022-12-27 12:04:51  Either Parameter 4 or Parameter 5 are NOT populated; displaying instructions …
2022-12-27 12:04:51  swiftDialog version 2.0.1.3814 found; proceeding...
2022-12-27 12:04:51  Title: Title [Parameter 4] goes here
2022-12-27 12:04:51  Message: ### Message [Parameter 5] goes here

**Note:** Please review this [blog post](https://snelson.us/2022/03/display-message-via-swiftdialog/) for additional information.

---

Displaying with the following "extraflags:"

--width 825 --height 400 --moveable --timer 75 --position topright --blurscreen --titlefont size=26 --messagefont size=13 --iconsize 125

Thank you, [Bart Reardon](https://www.buymeacoffee.com/bartreardon), for making [swiftDialog](https://github.com/bartreardon/swiftDialog)! (Two words: **Rock. Star.**)
2022-12-27 12:04:51  Extra Flags: --width 825 --height 400 --moveable --timer 75 --position topright --blurscreen --titlefont size=26 --messagefont size=13 --iconsize 125
2022-12-27 12:05:38  Return Code: 2
dan clicked Button 2 [Parameter 8]
2022-12-27 12:05:38  dan clicked Button 2 [Parameter 8];
2022-12-27 12:05:38  Quitting …
2022-12-27 12:05:39  Exiting …
2022-12-27 12:05:39  Removing /var/tmp/dialogWelcomeLog.C2o …
2022-12-27 12:05:39  Goodbye!
  1. Use your favorite editor to review ~/Downloads/Display-Message-via-Dialog-reference.bash
    • Observe that with version 0.0.6, --overlay icon is a hard-coded option (which defaults to your custom Self Service icon)
      • See Mac Admin Slack #swiftDialog thread one and thread two
      • Note: During enrollment, we install our custom Self Service icon client-side to a path without spaces and we’re able to include --overlay icon in Parameter 10: Extra Flags
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Display Message: Dialog
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

updateScriptLog "Title: ${title}"
updateScriptLog "Message: ${message}"
updateScriptLog "Extra Flags: ${extraflags}"

# shellcheck disable=SC2086
${dialogBinary} \
    ${titleoption} "${title}" \
    ${messageoption} "${message}" \
    ${iconoption} "${icon}" \
    ${button1option} "${button1text}" \
    ${button2option} "${button2text}" \
    ${infobuttonoption} "${infobuttontext}" \
    --infobuttonaction "https://servicenow.company.com/support?id=kb_article_view&sysparm_article=${infobuttontext}" \
    --messagefont "size=14" \
    --commandfile "$dialogMessageLog}" \
    --overlayicon "$overlayicon" \
    ${extraflags}

returncode=$?
updateScriptLog "Return Code: ${returncode}"

case ${returncode} in

    0)  ## Process exit code 0 scenario here
        echo "${loggedInUser} clicked ${button1text}"
        updateScriptLog "${loggedInUser} clicked ${button1text};"
        if [[ -n "${action}" ]]; then
            su - "${loggedInUser}" -c "open \"${action}\""
        fi
        quitScript "0"
        ;;

    2)  ## Process exit code 2 scenario here
        echo "${loggedInUser} clicked ${button2text}"
        updateScriptLog "${loggedInUser} clicked ${button2text};"
        quitScript "0"
        ;;

    3)  ## Process exit code 3 scenario here
        echo "${loggedInUser} clicked ${infobuttontext}"
        updateScriptLog "${loggedInUser} clicked ${infobuttontext};"
        ;;

    4)  ## Process exit code 4 scenario here
        echo "${loggedInUser} allowed timer to expire"
        updateScriptLog "${loggedInUser} allowed timer to expire;"
        ;;

    20) ## Process exit code 20 scenario here
        echo "${loggedInUser} had Do Not Disturb enabled"
        updateScriptLog "${loggedInUser} had Do Not Disturb enabled"
        quitScript "0"
        ;;

    *)  ## Catch all processing
        echo "Something else happened; Exit code: ${returncode}"
        updateScriptLog "Something else happened; Exit code: ${returncode};"
        quitScript "${returncode}"
        ;;

esac
B. Add the Display Message with swiftDialog script to your Jamf Pro server
  1. Add the Display Message via swiftDialog script to your Jamf Pro server
  2. Edit --infobuttonaction to the correct URL for your organization

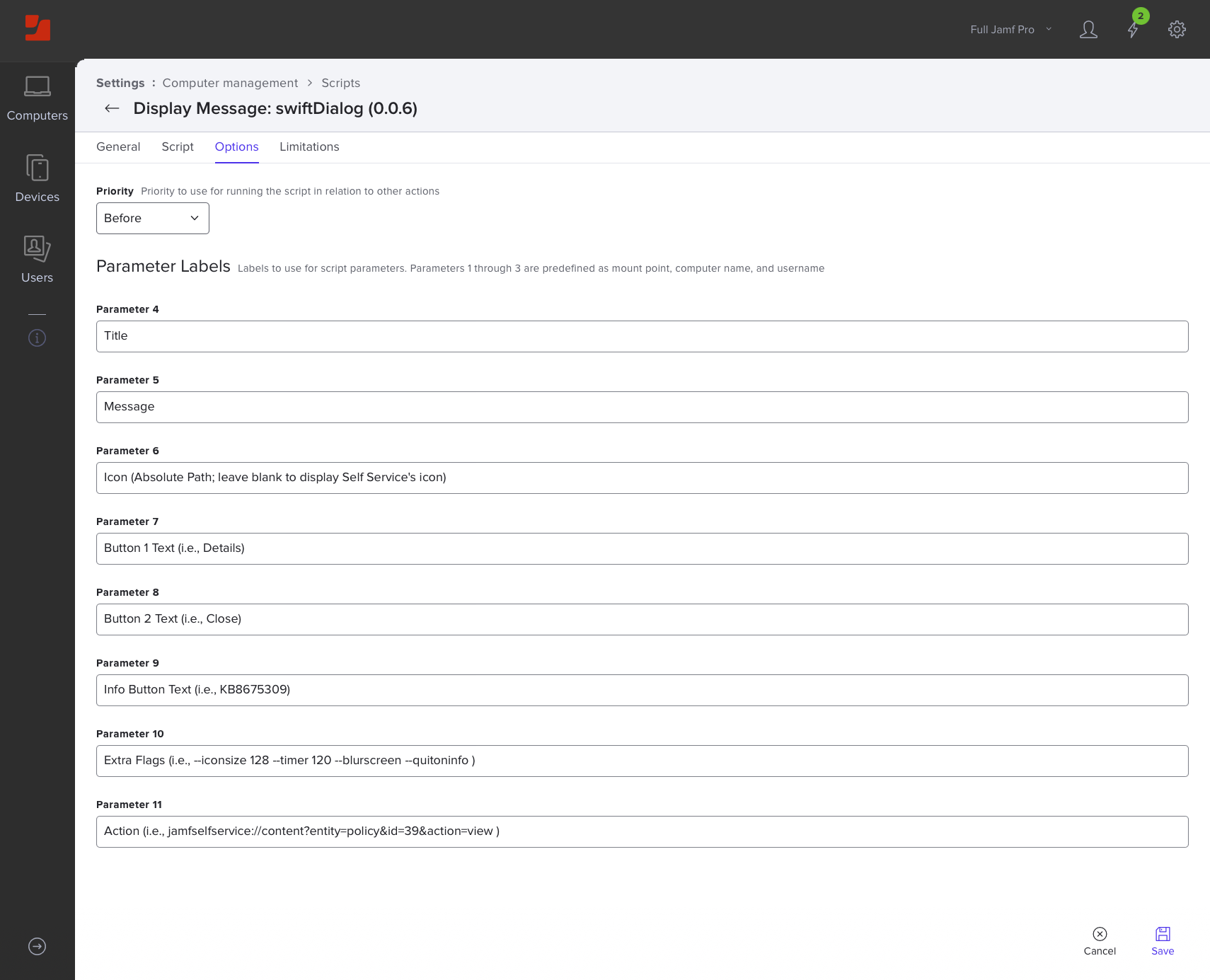

  3. Specify the following for Options > Parameter Labels
    • Parameter 4: Title
    • Parameter 5: Message
    • Parameter 6: Icon (Absolute Path; leave blank to display Self Service's icon)
    • Parameter 7: Button 1 Text (i.e., Details)
    • Parameter 8: Button 2 Text (i.e., Close)
    • Parameter 9: Info Button Text (i.e., KB008675309)
    • Parameter 10: Extra Flags (i.e., --iconsize 128 --timer 60 --blurscreen --quitoninfo
    • Parameter 11: Action (i.e., jamfselfservice://content?entity=policy&id=17&action=view )
  4. Click Save

Latest version availble on GitHub.

#!/bin/bash

####################################################################################################
#
# Display Message via swiftDialog
#
#   Purpose: Displays an end-user message via swiftDialog
#   See: https://snelson.us/2022/10/display-message-swiftdialog-003/
#
####################################################################################################
#
# HISTORY
#
# Version 0.0.1, 18-Feb-2022, Dan K. Snelson (@dan-snelson)
#   Original version
#
# Version 0.0.2, 06-Apr-2022, Dan K. Snelson (@dan-snelson)
#   Default icon to Jamf Pro Self Service if not specified
#
# Version 0.0.3, 19-Oct-2022, Dan K. Snelson (@dan-snelson)
#   Validate Operating System
#   Check for / install dialog (thanks, @acodega)
#   Added Client-side Script Logging
#   Changed Jamf Pro Script Parameters
#   - Friendly error message when Title or Message are not populated
#   - Changed Action (Parameter 11) to be optional (thanks for the idea, @eosrebel!)
#
# Version 0.0.4, 03-Nov-2022, Dan K. Snelson (@dan-snelson)
#   Reverted `action` code to version 0.0.2
#
# Version 0.0.5, 05-Dec-2022, Dan K. Snelson (@dan-snelson)
#   Added `returncode` of `20` for "Do Not Disturb"
#
# Version 0.0.6, 21-Dec-2022, Dan K. Snelson (@dan-snelson)
#   - Hard-code `overlayicon` to use Self Service's icon (to help overcome the inability to include
#     spaces in Jamf Pro Script Parameters)
#
####################################################################################################



####################################################################################################
#
# Variables
#
####################################################################################################

scriptVersion="0.0.6"
scriptLog="/var/tmp/org.churchofjesuschrist.log"
export PATH=/usr/bin:/bin:/usr/sbin:/sbin:/usr/local/bin/
loggedInUser=$( echo "show State:/Users/ConsoleUser" | scutil | awk '/Name :/ { print $3 }' )
osVersion=$( sw_vers -productVersion )
osMajorVersion=$( echo "${osVersion}" | awk -F '.' '{print $1}' )
dialogBinary="/usr/local/bin/dialog"
dialogMessageLog=$( mktemp /var/tmp/dialogWelcomeLog.XXX )
overlayicon=$( defaults read /Library/Preferences/com.jamfsoftware.jamf.plist self_service_app_path )
if [[ -n ${4} ]]; then titleoption="--title"; title="${4}"; fi
if [[ -n ${5} ]]; then messageoption="--message"; message="${5}"; fi
if [[ -n ${6} ]]; then iconoption="--icon"; icon="${6}"; fi
if [[ -n ${7} ]]; then button1option="--button1text"; button1text="${7}"; fi
if [[ -n ${8} ]]; then button2option="--button2text"; button2text="${8}"; fi
if [[ -n ${9} ]]; then infobuttonoption="--infobuttontext"; infobuttontext="${9}"; fi
extraflags="${10}"
action="${11}"



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Default icon to Jamf Pro Self Service if not specified
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

if [[ -z ${icon} ]]; then
    iconoption="--icon"
    icon=$( defaults read /Library/Preferences/com.jamfsoftware.jamf.plist self_service_app_path )
fi



####################################################################################################
#
# Functions
#
####################################################################################################

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Client-side Script Logging
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

function updateScriptLog() {
    echo -e "$( date +%Y-%m-%d\ %H:%M:%S )  ${1}" | tee -a "${scriptLog}"
}



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# JAMF Display Message (for fallback in case swiftDialog fails to install)
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

function jamfDisplayMessage() {
    updateScriptLog "Jamf Display Message: ${1}"
    /usr/local/jamf/bin/jamf displayMessage -message "${1}" &
}



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Check for / install swiftDialog (Thanks big bunches, @acodega!)
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

function dialogCheck() {

    # Get the URL of the latest PKG From the Dialog GitHub repo
    dialogURL=$(curl --silent --fail "https://api.github.com/repos/bartreardon/swiftDialog/releases/latest" | awk -F '"' "/browser_download_url/ && /pkg\"/ { print \$4; exit }")

    # Expected Team ID of the downloaded PKG
    expectedDialogTeamID="PWA5E9TQ59"

    # Check for Dialog and install if not found
    if [ ! -e "/Library/Application Support/Dialog/Dialog.app" ]; then

        updateScriptLog "Dialog not found. Installing..."

        # Create temporary working directory
        workDirectory=$( /usr/bin/basename "$0" )
        tempDirectory=$( /usr/bin/mktemp -d "/private/tmp/$workDirectory.XXXXXX" )

        # Download the installer package
        /usr/bin/curl --location --silent "$dialogURL" -o "$tempDirectory/Dialog.pkg"

        # Verify the download
        teamID=$(/usr/sbin/spctl -a -vv -t install "$tempDirectory/Dialog.pkg" 2>&1 | awk '/origin=/ {print $NF }' | tr -d '()')

        # Install the package if Team ID validates
        if [[ "$expectedDialogTeamID" == "$teamID" ]]; then

            /usr/sbin/installer -pkg "$tempDirectory/Dialog.pkg" -target /
            sleep 2
            updateScriptLog "swiftDialog version $(dialog --version) installed; proceeding..."

        else

            # Display a so-called "simple" dialog if Team ID fails to validate
            runAsUser osascript -e 'display dialog "Please advise your Support Representative of the following error:\r\r• Dialog Team ID verification failed\r\r" with title "Display Message: Error" buttons {"Close"} with icon caution'
            quitScript "1"

        fi

        # Remove the temporary working directory when done
        /bin/rm -Rf "$tempDirectory"

    else

        updateScriptLog "swiftDialog version $(dialog --version) found; proceeding..."

    fi

}



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Quit Script (thanks, @bartreadon!)
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

function quitScript() {

    updateScriptLog "Quitting …"
    echo "quit:" >> "${dialogMessageLog}"

    sleep 1
    updateScriptLog "Exiting …"

    # Remove dialogMessageLog
    if [[ -e ${dialogMessageLog} ]]; then
        updateScriptLog "Removing ${dialogMessageLog} …"
        rm "${dialogMessageLog}"
    fi

    updateScriptLog "Goodbye!"
    exit "${1}"

}



####################################################################################################
#
# Program
#
####################################################################################################

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Client-side Logging
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

if [[ ! -f "${scriptLog}" ]]; then
    touch "${scriptLog}"
    echo "$( date +%Y-%m-%d\ %H:%M:%S )  *** Created log file via script ***" >>"${scriptLog}"
fi



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Logging preamble
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

updateScriptLog "\n\n###\n# Display Message via Dialog (${scriptVersion})\n###\n"



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Validate Operating System
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

if [[ "${osMajorVersion}" -ge 11 ]] ; then
    updateScriptLog "macOS ${osMajorVersion} installed; proceeding ..."
    scriptResult="${scriptResult} macOS ${osMajorVersion} installed; proceeding;"
else
    updateScriptLog "macOS ${osVersion} installed; exiting."
    jamfDisplayMessage "Display Message via swiftDialog (${scriptVersion}) by Dan K. Snelson

macOS ${osVersion} installed; macOS Big Sur 11 (or later) required"
    exit 1
fi



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Validate Script Parameters
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

if [[ -z "${title}" ]] || [[ -z "${message}" ]]; then

    updateScriptLog "Either Parameter 4 or Parameter 5 are NOT populated; displaying instructions …"

    extraflags="--width 825 --height 400 --moveable --timer 75 --position topright --blurscreen --titlefont size=26 --messagefont size=13 --iconsize 125"

    titleoption="--title"
    title="Title [Parameter 4] goes here"

    messageoption="--message"
    message="### Message [Parameter 5] goes here  \n\n**Note:** Please review this [blog post](https://snelson.us/2022/03/display-message-via-swiftdialog/) for additional information.  \n\n--- \n\nDisplaying with the following \"extraflags:\"  \n\n${extraflags}  \n\nThank you, [Bart Reardon](https://www.buymeacoffee.com/bartreardon), for making [swiftDialog](https://github.com/bartreardon/swiftDialog)! (Two words: **Rock. Star.**)"

    button1option="--button1text"
    button1text="Button 1 [Parameter 7]"

    button2option="--button2text"
    button2text="Button 2 [Parameter 8]"

    infobuttonoption="--infobuttontext"
    infobuttontext="Infobutton [Paramter 9]"

else

    updateScriptLog "Both \"title\" and \"message\" Parameters are populated; proceeding ..."

fi



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Check for / install swiftDialog
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

dialogCheck



# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #
# Display Message: Dialog
# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

updateScriptLog "Title: ${title}"
updateScriptLog "Message: ${message}"
updateScriptLog "Extra Flags: ${extraflags}"

# shellcheck disable=SC2086
${dialogBinary} \
    ${titleoption} "${title}" \
    ${messageoption} "${message}" \
    ${iconoption} "${icon}" \
    ${button1option} "${button1text}" \
    ${button2option} "${button2text}" \
    ${infobuttonoption} "${infobuttontext}" \
    --infobuttonaction "https://servicenow.company.com/support?id=kb_article_view&sysparm_article=${infobuttontext}" \
    --messagefont "size=14" \
    --commandfile "$dialogMessageLog}" \
    --overlayicon "$overlayicon" \
    ${extraflags}

returncode=$?
updateScriptLog "Return Code: ${returncode}"

case ${returncode} in

    0)  ## Process exit code 0 scenario here
        echo "${loggedInUser} clicked ${button1text}"
        updateScriptLog "${loggedInUser} clicked ${button1text};"
        if [[ -n "${action}" ]]; then
            su - "${loggedInUser}" -c "open \"${action}\""
        fi
        quitScript "0"
        ;;

    2)  ## Process exit code 2 scenario here
        echo "${loggedInUser} clicked ${button2text}"
        updateScriptLog "${loggedInUser} clicked ${button2text};"
        quitScript "0"
        ;;

    3)  ## Process exit code 3 scenario here
        echo "${loggedInUser} clicked ${infobuttontext}"
        updateScriptLog "${loggedInUser} clicked ${infobuttontext};"
        ;;

    4)  ## Process exit code 4 scenario here
        echo "${loggedInUser} allowed timer to expire"
        updateScriptLog "${loggedInUser} allowed timer to expire;"
        ;;

    20) ## Process exit code 20 scenario here
        echo "${loggedInUser} had Do Not Disturb enabled"
        updateScriptLog "${loggedInUser} had Do Not Disturb enabled"
        quitScript "0"
        ;;

    *)  ## Catch all processing
        echo "Something else happened; Exit code: ${returncode}"
        updateScriptLog "Something else happened; Exit code: ${returncode};"
        quitScript "${returncode}"
        ;;

esac

updateScriptLog "End-of-line."

quitScript "0"
C. Create a Jamf Pro Policy to display an end-user message

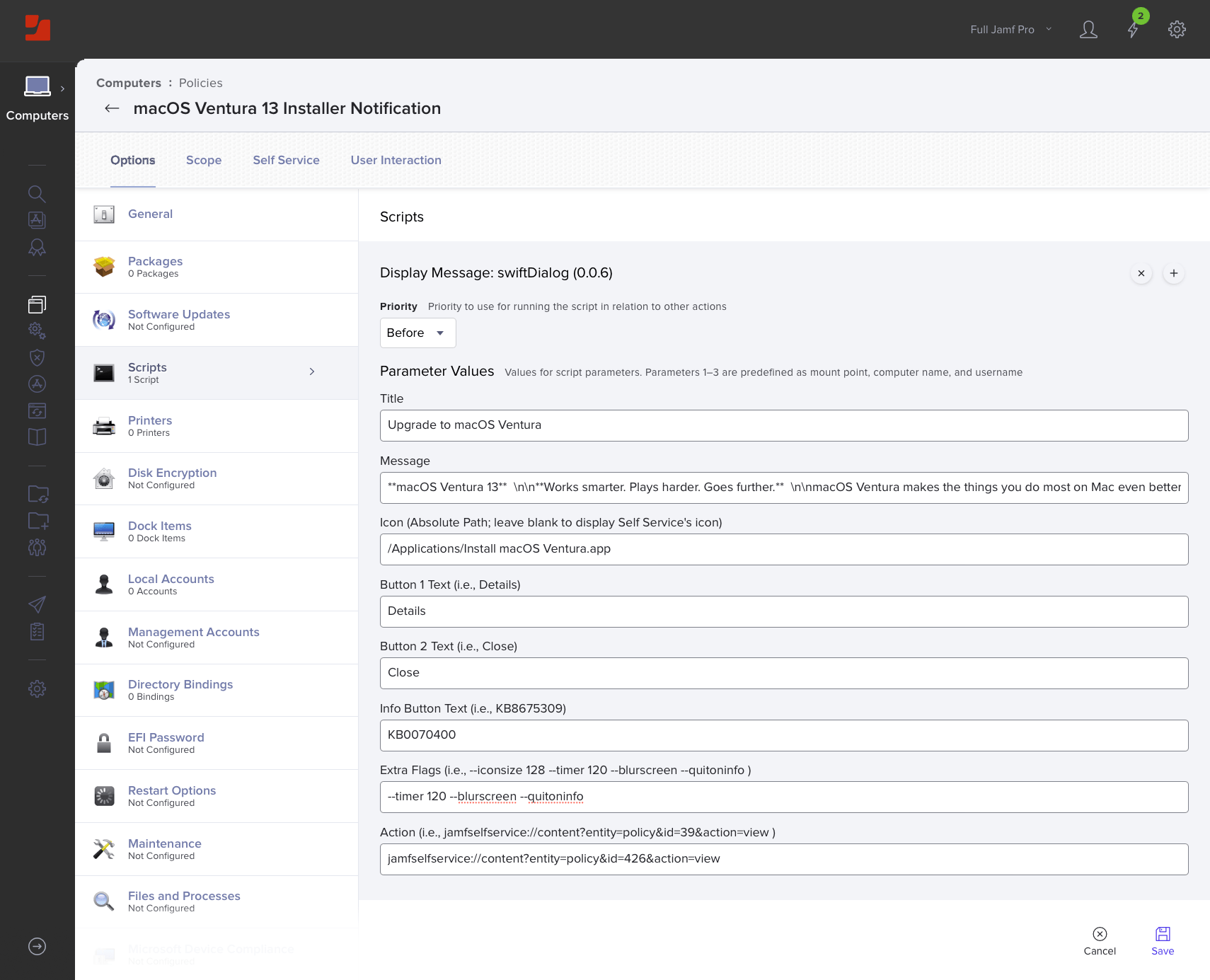

  1. Create a new Jamf Pro Policy, using the following as a guide for Options > General:
    • Set Display Name to macOS Ventura 13 Installer Notification
    • Set Trigger to Recurring Check-in
    • Set Execution Frequency to the desired value
  2. Select the Scripts payload and add the Display Message via swiftDialog script
  3. Specify the Parameter Values
    • Title: Upgrade to macOS Ventura
    • Message: **macOS Ventura 13** \n\n**Works smarter. Plays harder. Goes further.** \n\nmacOS Ventura makes the things you do most on Mac even better, with powerful new ways to get more done, share and collaborate in your favorite apps, immerse yourself in next‑level games, and take full advantage of your other devices. \n\nClick **Details** to learn more before upgrading. \n\nIf you need assistance, please contact the Global Services Department, \n+1 (801) 555-1212, and mention KB008675309.
    • Icon: /Applications/Install macOS Ventura.app
    • Button 1 Text: Details
    • Button 2 Text: Close
    • Info Button Text: KB008675309
    • Extra Flags: --timer 120 --blurscreen --quitoninfo
    • Action: jamfselfservice://content?entity=policy&id=363&action=view
  4. Adjust Scope to your liking
  5. Click Save
Feature History

0.0.6 (28-Dec-2022)

  • Hard-code overlayicon to use Self Service’s icon (to help overcome the inability to include spaces in Jamf Pro Script Parameters)

0.0.5 (05-Dec-2022)

  • Added returncode of 20 for “Do Not Disturb”

0.0.4 (03-Nov-2022)

  • Reverted action code to version 0.0.2

0.0.3 (19-Oct-2022)

  • Validate Operating System
  • Check for / install dialog (thanks, acodega)
  • Added Client-side Script Logging
  • Changed Jamf Pro Script Parameters
    • Changed Action (Parameter 11) to be optional (thanks for the idea, eosrebel!)
    • Friendly error message when Title or Message are not populated (thanks, Bart. Two words: Rock. Star.)

0.0.2 (06-Apr-2022)

  • Default icon to Jamf Pro Self Service if not specified

0.0.1 (18-Feb-2022)

  • Original version
Posted in Jamf Pro, Scripts, Tips & Tricks

Related Posts
